Inside a Metering Skid: How It Works and Where It's Used
Introduction
Knowing the precise amount of fluid that passes via pipelines is not only good practice, but also necessary in sectors like water utilities, gas, oil, and chemicals. Accurate measurement is a must for upholding safety requirements and for billing, depending on volume. The purpose of a metering skid system is to house all required parts, such as flow meters, valves, piping, and sensors, on a single frame. This allows for speedier, more dependable installations that are factory-calibrated before they even reach the site.
What is a Metering Skid?
A metering skid is a completely built, pre-engineered package that is mounted on a steel skid or frame. It combines:
- Flow meters (positive displacement, ultrasonic, turbine, and Coriolis)
- Pipelines and valves
- Temperature and pressure sensors
- PLCs and flow computers
Its primary objectives are:
- Custody transfer: Used in chemical, oil, and gas transactions where precise measurements guarantee financial equity.

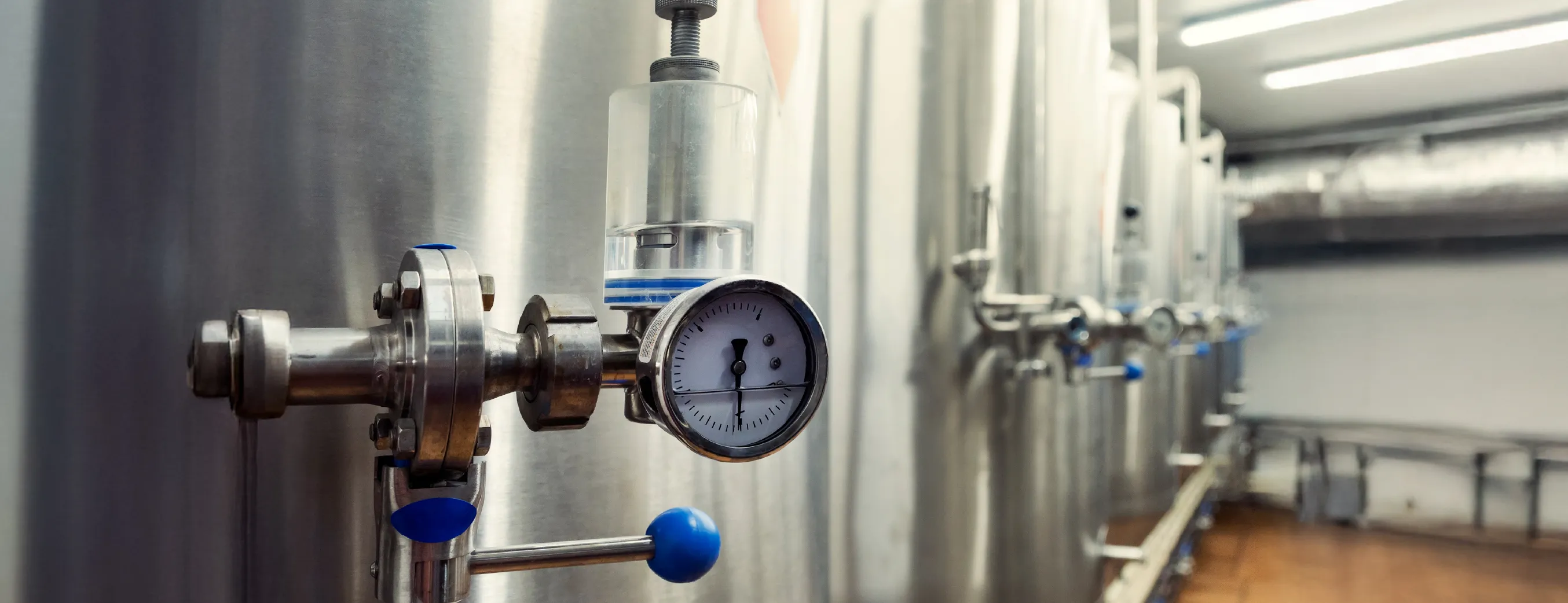

- Process control: Facilitates efficient industrial operations by automating and standardizing fluid flow measurement.
- Plug-and-play installation: This method drastically cuts down on setup time and onsite problems because it is factory-calibrated and tested.
Modular skids from Maxima Automation are renowned for their accuracy, versatility, and simplicity of interface with current control systems.
How Does a Metering Skid Work?
1. Flow Measurement
Accurate flow measurement is a metering skid's primary purpose. Among the technologies are:
- Coriolis meters: Directly measure density and mass flow.
- Turbine meters: Measure the pulses of fluid passing through a rotor.
- Ultrasonic meters: Perfect for clean fluids, they use sound waves.
- Positive displacement meters: Use mechanical displacement to measure fluid volume.
These meters produce accurate digital indications from physical flow.
2. Pressure & Temperature Compensation
Temperature and pressure have a big impact on flow measurement. In order to provide precise measurements under various operating situations and to account for fluid expansion and contraction, sensors in the skid track these variables and provide data to the flow computer.

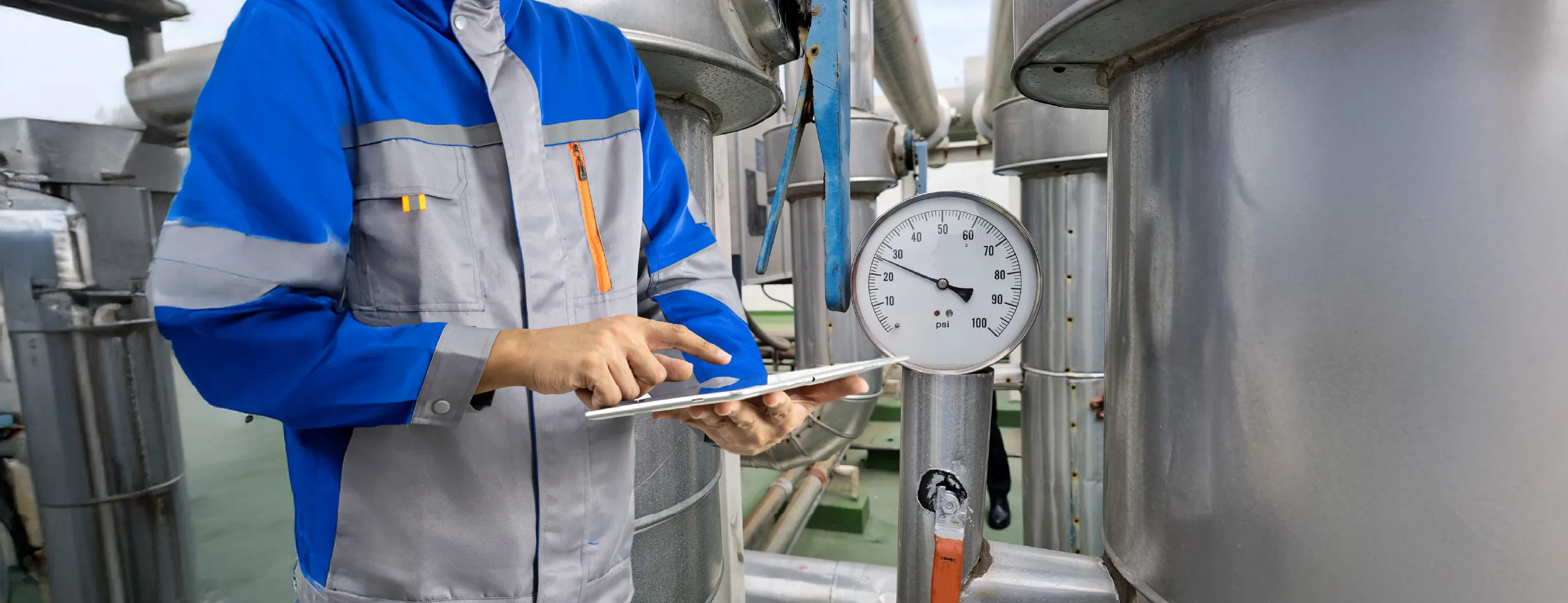

3. Control & Data Systems
The "brain" of the arrangement is made up of PLCs and flow computers. They:
- Gather and analyze sensor and flow meter data.
- Connect to SCADA/DCS to enable real-time monitoring.
- Real-time control actions, like valve opening or flow modification, are triggered.
4. Fluid Compatibility & Versatility
Thanks to adjustable meter types and materials that are appropriate for various fluids and industry needs, metering skids are available for a wide range of fluids, from water and chemical blends to crude oil and refined products.
Applications of Metering Skid Systems
- Oil and Gas Terminals: Used for custody transfers when trucks, pipelines, or tankers are being loaded or unloaded.
- Refineries and Offshore Platforms: To measure internal operations and inputs/outputs precisely.
- Chemical Plants: For precisely dosing chemicals into systems.
- Water and Utility Infrastructure: To detect leaks, conduct water audits, and provide proper invoicing.
Choosing the Right Metering Skid Supplier in Chennai
- Customization to Fit Process Conditions: Select a supplier who can customize the skid according to your fluid type, flow range, temperature, pressure, and site constraints.
- International Standards Compliance: Assure adherence to industry standards for fiscal metering, including API, AGA, ISO, OIML, and MID.

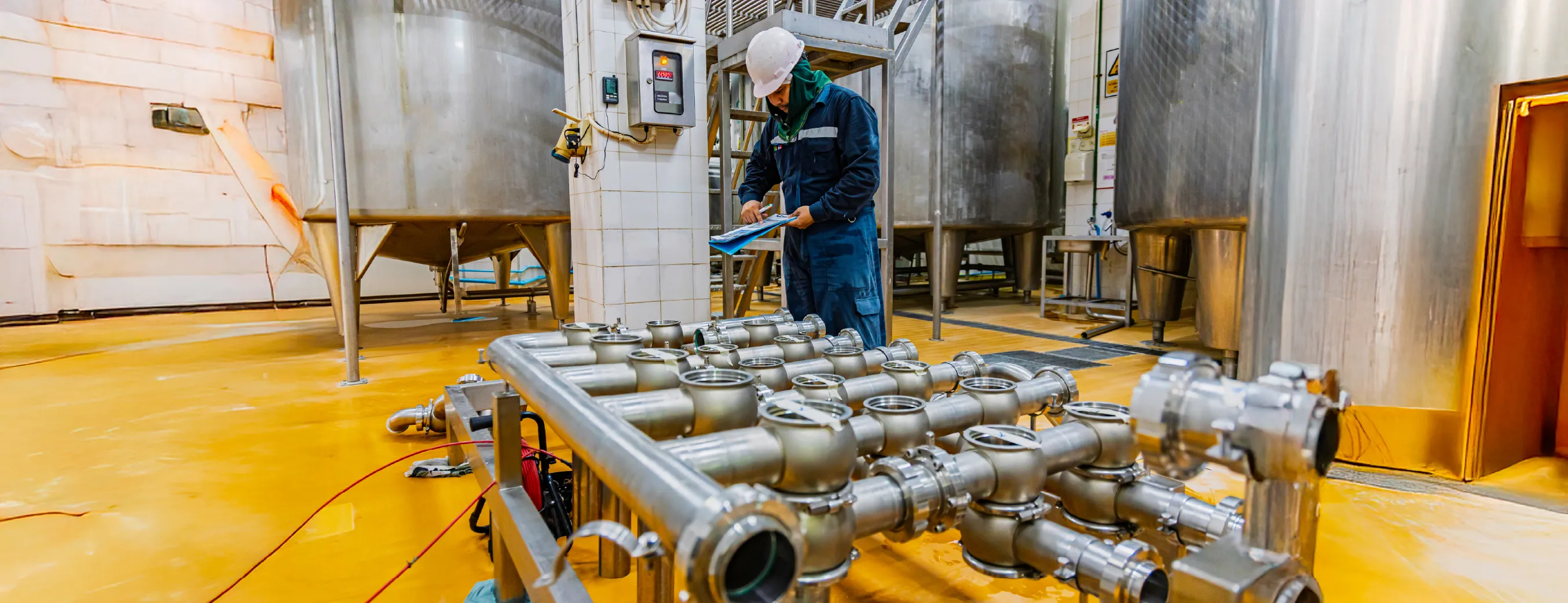

- Factory Testing (FAT): Factory Acceptance Tests minimize onsite installation problems and downtime.
- After-Sales Service & Integration: Look for vendors who provide calibration, maintenance, training, and simple SCADA/PLC connectivity.
Trusted Metering Skid Suppliers
Accurate fluid measurement is becoming more and more in demand throughout India. Let's examine the characteristics of a leading metering skid supplier.
Why Maxima Automation Is a Leader
- Modular and Customizable Designs: Their skids are designed to meet particular fluid kinds and flow conditions.
- Advanced Calibration and Precision: Renowned for incredibly precise factory calibration.
- Smooth Control Integration: Pre-configured PLC/SCADA support makes integration easy.
- Complete Turnkey Solutions: Maxima handles everything from engineering to commissioning.
- International Standards: Their systems are suitable for domestic and export needs.
- Robust Support Network: Headquartered in Chennai with pan-India service.
.webp)
Conclusion
A full, high-precision measurement solution, a metering skid system is more than just a set of tools. In addition to supporting vital business functions like safety and billing, it expedites setup, reduces installation time, and guarantees reliable, consistent readings in demanding industrial settings.
You are investing in dependability, international-grade standards, turnkey delivery, and ongoing support when you work with a skilled and knowledgeable metering skid supplier like Maxima Automation. Whether you run a chemical plant, refinery, or port, these modular technologies improve operational excellence and offer peace of mind.
